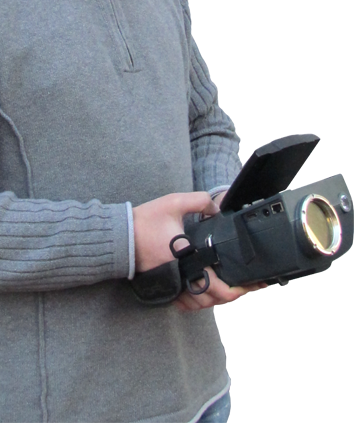

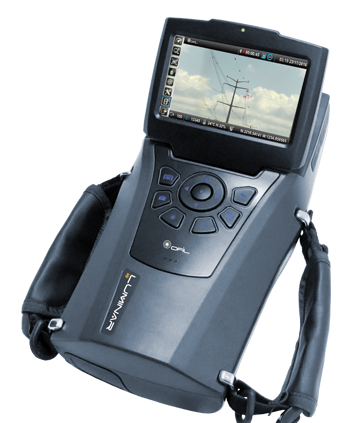

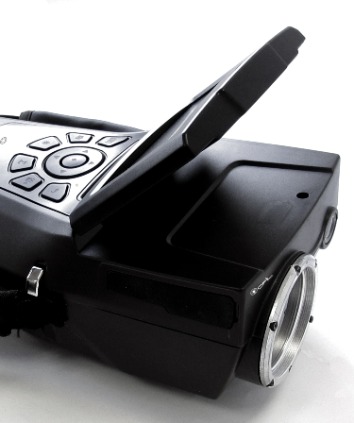

Luminar HD
Luminar HD
Luminar HD
Luminar HD
Luminar HD
Luminar HD

Luminar HD

UV Corona Camera

Description:

  • Highest Sensitivity to Corona & RIV sources
  • RIV Detection 3.6 dBµV (RIV) @1MHz @ 10m
  • Powerful continous Optical & Digital Zoom
  • Display TFT LCD Color sun readable
  • HD 720p videos & high resolution images
  • Built-in GPS with internal antenna
  • Bluetooth & Wi-Fi communication
  • Temperature & Humidity plug; IP54
  • Size (LxWxH) 29x13x11.7 cm; weight 2.2 Kg

Share Product

Product Information

Ofil is the inventor and worldwide leader of daytime UV technology inspection. Ofil offers the lowest cost of entry to the daytime corona inspection world, and serves a wide range of applications in various market segments. Ofil holds an ISO certificate and its cameras are tested and certified by international testing laboratories. Ofils DayCor® product family provides solutions for maintenance in the electrical utility industry and petrochemical industries. LuminarHD is the top line handheld corona camera boosted with features that enhance inspection process. LuminarHD implements Ofils benchmarked DayCor® proprietary technology ensuring accurate detection, recording and displaying of UV radiation emanated by corona. Percieved GPS, text & audio annotations, ambient temp & humidity are marked on captured media and saved as meta data for post processing and reporting. Wi-Fi, LAN and Bluetooth communication protocols support remote control and efficient data transfer.

Technical Specifications

Technical Specifications Description
Discharge Detection

1pC @15m (RWE certified : IEC 60270:2000)

RIV Sensitivity

3.6 dBµV @ 1 MHz @10m (RWE certifiead: NEMA 107-1987)

Image Mode

Combine (UV&Visible), UV Only, visible only

Zoom

12x Optical, 12x Digital (144 optical X Digital)

Spectral Range

240-280nm

Storage Media

Memory flash card Micro SD

Focus Range

0.5m to infinity

Media Capture

Video Capture & Playback

Battery Type

Li-Ion; 4 hours

Display

5" color sun readable TFT LCD ( 800x480 pixels)

Min Visible Light Sensitivity

0.1 Lux

Charging Systems

Internal with AC Adapter

Dimension (LxWxH)

29x13x11.7 cm // 2.2Kg

Interfaces

Bluetooth, WiFi, Ethernet
